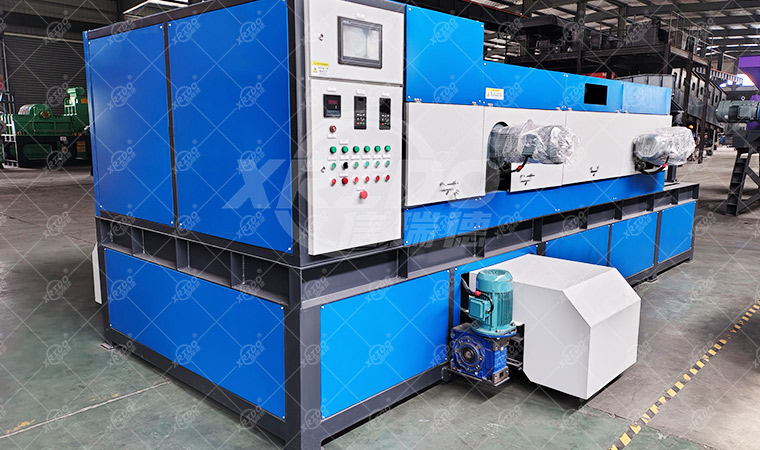

Eddy Current Separator

1.E waste (for appliance waste dismantling)

2.Aluminum beverage can mixed with plastic bottle

3.Ferrous metal with glass

4.Ferrous metal with plastic

5.Ferrous metal with paper

6.Ferrous metal with rubber

FEATURES

There is a high-frequency alternating strong magnetic field is generated on the surface of the magnetic roller . When the conductive non-ferrous metal passes through the magnetic field, an eddy current will be induced in the non-ferrous metal, and the eddy current separator itself will produce a direction opposite to the original magnetic field. Non-ferrous metals (such as copper, aluminum, etc.) will jump forward along the conveying direction due to the repulsive force of the magnetic field to achieve separation from other non-metallic substances and achieve the purpose of sorting; its main distinguishing criterion It is the ratio of the conductivity and density of the material. The higher ratio is easier to separate than the lower ratio.

Character

1.Easy operation ,automatic ferrous metal and non ferrous metal separation

2.The raw materials size from 5mm--100 mm could be fed directly

3.Flexible installation as customer side workshop

4.As different kind of raw material to design the rotor .

TECHNICAL PARAMETERS

Model Magnetic roller (φ) Capacity (T/H) Power (kw) Size (mm)
XRD400 300 1-2 3+0.55+0.25 2885*1500*1693
XRD600 300 2-4 4+0.75+0.25 2885*1700*1695
XRD800 300 5-6 5.5+1.1+0.55 2950*1900*1695
XRD1000 300 8-10 7.5+1.5+0.55 2950*2100*1695
