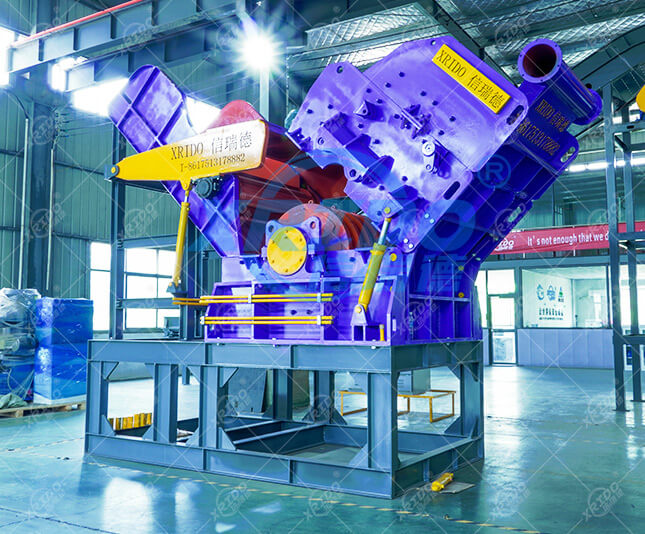

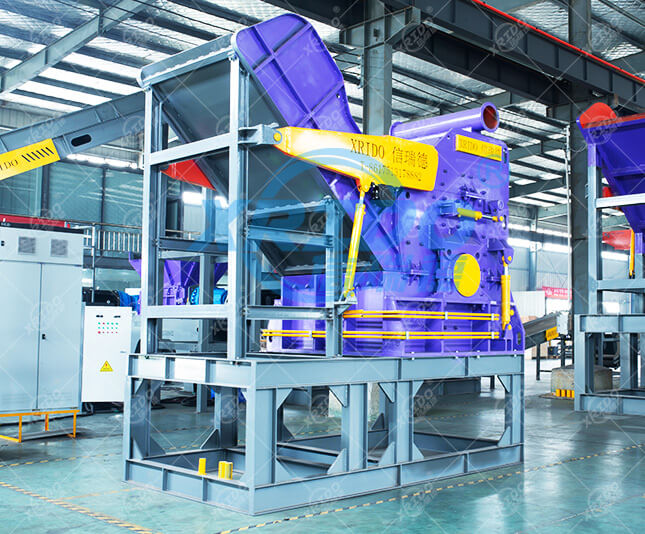

Rotor Waste Crushing Recycling Machine
Size : Customize
Power : 22/30/55/75
Rotor dia.mm : 450 mm-1000 mm
Applicable Material : Motor, Rotor,Stator, Light and thin scrap steel, Electronic waste
Product Description
The motor drives the rotor of the hammer crusher at a high speed by the pulley, there are several hammer on rotors. When the material goes to chamber, they are crushed by the rotating hammers, the products which are crushed to meet the required size will be discharged, large size are brought back to the crushed area by the hammers until satisfy customer requirement.

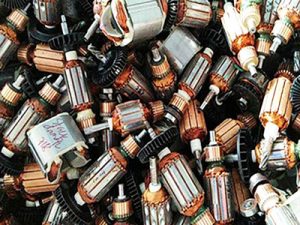

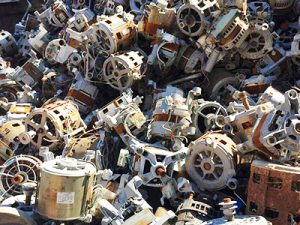

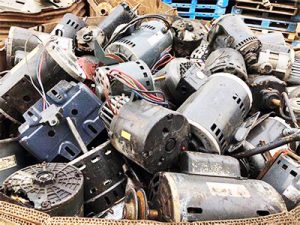

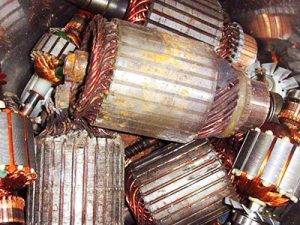

APPLICABLE
√Motor
√Rotor
√Stator
√Light and thin scrap steel
√Electronic waste

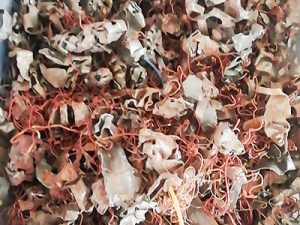

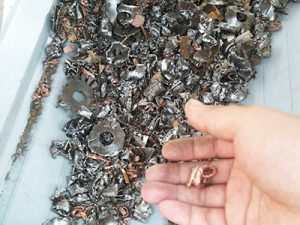

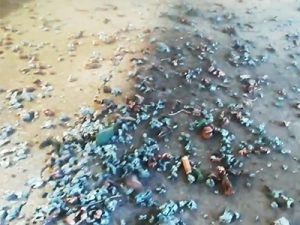

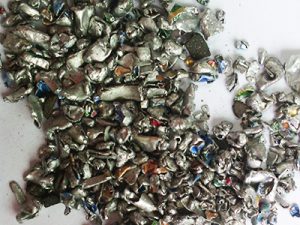

FINAL PRODUCT
Technical Parameters
| Model | 600 | 800 | 1000 | 1200 |
| Rotor dia.mm | 450 mm | 650 mm | 850 mm | 1000 mm |
| Diam of body | 600 mm | 800mm | 850 mm | 1000 mm |
| Rotary speed | 600-970 RPM | |||
| Feeder size | 40mm | 50mm | 70mm | 100mm |
| Discharge size | 0-8mm | |||
| Power | 22 | 30 | 55 | 75 |
| Size | 2000*660*1780 mm | 2200*840*1980 mm | 2700*1160*2000 mm | 2800*1400*2300 mm |
