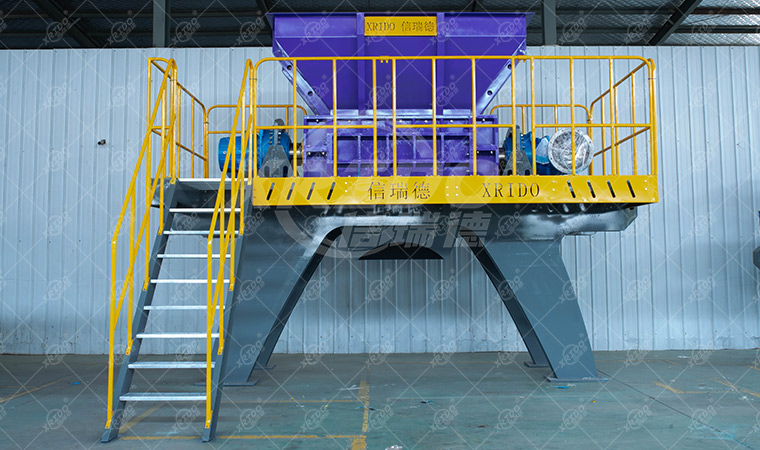

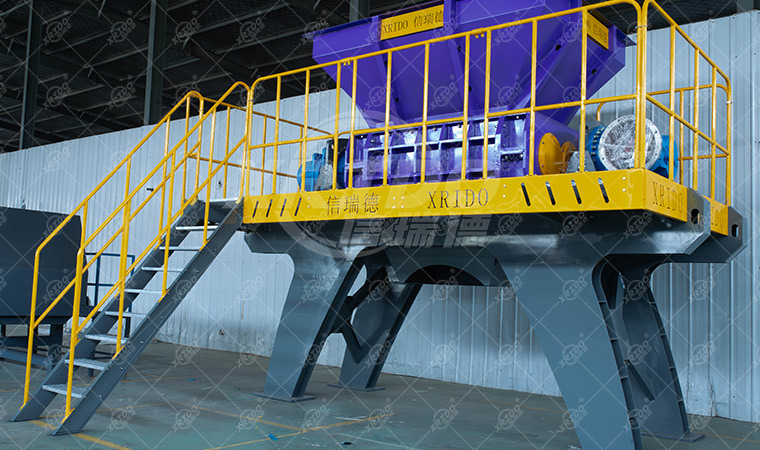

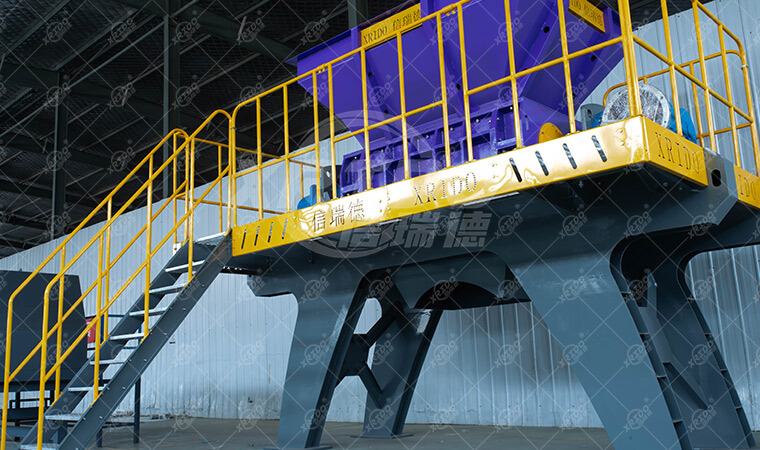

Dual Shaft Shredder

Dual shaft shredder machine also as two shaft shredder , function to downsize raw material ,unique shaft and blade design . to improve efficient of production via low running speed high torque avoid raw material twining on bade .

FEATURES

Meanwhile , there are setting start , stop ,urgently , and overloading reverse running function on the PLC controller .

Its for the tough and brittle material . for example : WEEE , PLASTIC, WOOD , METAL , RUBBER SCRAP , PACKAGE BARREL ,MEDICAL SCRAP , TRAY ,LIVING WASTE , PAPER SCRAP ECT

Character

1.Low speed high torque

2.Blade is made of special alloy (H13.9SiCr.5WSiCr etc)

3.Chamber takes modular , which is easy and convenient to exchange blade or maintenance

4.Motor and cabinet controller takes famous brand (Siemens or ABB)

5.Shaft takes 40Cr material through heating treatment.

For different kind of raw material the blade could be chosen optional by customer , final size satisfy different customer requirement.

Waste Sorting & Recycling Line

We can design the most suitable waste sorting recycling process according to your materials for free.

Working Process of Waste Sorting Plant

TECHNICAL PARAMETERS

Model Power (KW) Rotating speed (r/min) Dimensions L/W/H(mm) Crushing cavity size C/D(mm) Diameter of knife body (mm)
XR-56 15+15 6-20 2800×1300×1850 600×500 220
XR-58 18.5+18.5 6-20 3000×1300×1850 800×500 220
XR-710 30+30 6-20 3300×1900×2200 1000×700 320
XR-812 37+37 6-20 3600×2000×2200 1200×800 400
XR-815 45+45 6-20 4180×2100×2400 1500×850 450
XR-918 75+75 6-20 5800×2400×3300 1800×900 500
XR-1020 90+90 6-20 6400×2700×3500 2000×1000 600
XR-1522 110+110 6-20 7800×3200×3800 2200×1500 800
